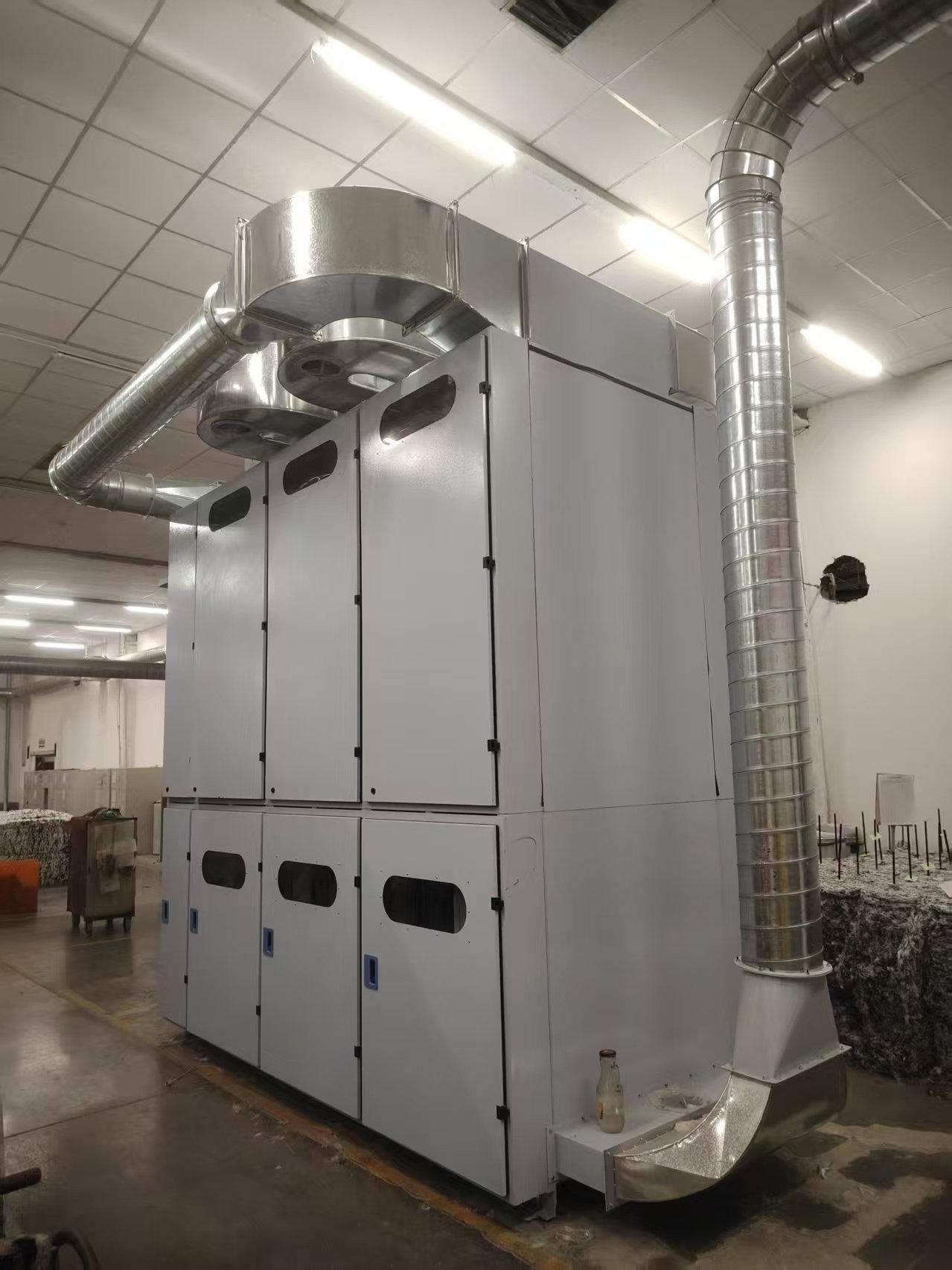

Multi-bin cotton blending machine
JW-07/1027
This machine is suitable for cotton,chemical fiber and its blends.Under the action of airflow,material entered into this machine is uniformly blown to each chamber to from air mixing.The different speed mixing of JW1027 is realized through the different output speed of each roller at the bottom of every chamber Meanwhile large cotton storage capacity is conductive to the stable cotton supply of the follow-up equipment.
Main Features
1. Raw material being fed to the chamber via S type pipe to make cotton drop uniform and smooth.
2. Large cotton storage capacity with about 100kg in each chamber.
3. High production up to 1200kg/h.
4. Simple machine struture with fewer fault point and higher reliability.
5. Little area occupation，
high efficiency, save labor, safety
Specifications
| Type | JW-M4 | JW-M6 | JW-M8 |
| Chambers | 4 | 6 | 8 |
| Applications | Pure cotton,chemical fiber and blends | ||
| Production (kg/h) | 600 | 900/1200 | 1200/1500 |
| Working width (mm) | 1200 | 1200/1600 | 1200/1600 |
| Installed power (kw) | 8.15 | 9.5 | 14.4 |
| Feed roller diameter (mm) | Φ180 | ||
| Feed roller speed (kg) | Adjusted by inverter | ||
| Beater diameter (mm) | Φ330 | ||
| Beater speed (r/min) | 450,504,546 | ||

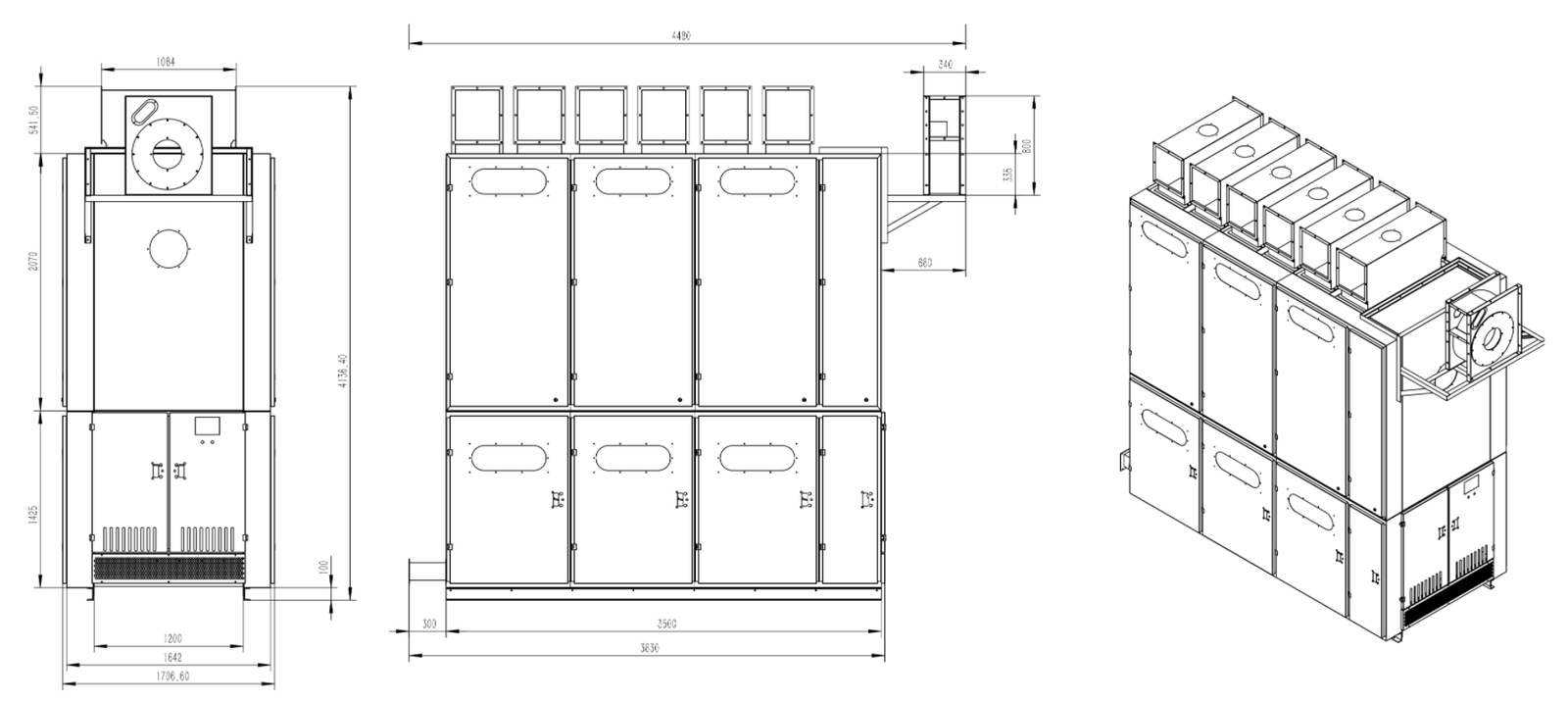

| Overall dimension (mm) | 2500 x 1640 x 4200 | 4000 x 1640(2040) x 4200 | 5000 x 1640(2040) x 4200 |
| Weight (1000kg) | 3 | 4 | 5 |
